exco

A state-of-the-art exhibition venue and specialized services for high-quality exhibitions and conferences. Click on the facility you are interested in.

The optimal platform for a successful business.

Experienced in hosting international events Convenient transportation and
accessibility A Green Convention Center utilizing renewable energy 30,000 m2 floor area to meet global standards

Experienced in hosting international events

Convenient transportation and accessibility

Green Convention Center utilizing Renewable Energy

30,000㎡ in size to meet global standards

West Wing

EXCO’s West Wing has a floor area of 22,159 m2, with five halls that can be divided into a maximum of seven exhibition halls. With a grand ballroom for high-class events, a 4,000-seat convention hall, a 1,500-seat auditorium, and a total of 23 conference rooms, EXCO can host multiple mid to large exhibitions and conventions at the same time. We offer world-class service, including a state-of-the-art security system and an independent Wi-Fi zone.

East Wing

Opened in 2021, EXCO’s East Wing has three halls with a total square footage of 15,012 m2 and is equipped with high-tech interview rooms and an electric vehicle charging station. The West Wing is accessible from the first floor, which can hold various large-scale, international events and conferences.

Exhibition 1,2,3Hall

Classification			Hall3	Hall2	Hall1	Sum
(㎡)			4,410	4,834	5,171	14,415
Scale(WxH)			77.7X59.3(3CHall : 12.4X43.4)	68.6X70.5	71.5X70.5	-
Capacity	Theater	Conference	2,700	2,500	2,800	17,000
	Theater	Performance	5,000	4,000		17,000
	Class room		1,800	1,900	2,200	1,900
	Banquet		1,200	1,300	1,500	4,000
Capacity			200	250	250	700
Organizer’s Office			2	1	2	5
Floor Load(㎡)			1.5(3CHall : 0.25)	2.5	2.5	-
Ceiling Height(m)			9.6(3CHall : 4)	17-13	17-13	-
Floor Box			38ea for every 9m	49ea for every 9m	63ea for every 9m
Electricity			3Ø 4W 380V 100A for every 9m 3Ø 3W 220V 60A for every 18m			-
Telephone & Wired Internet			10 telephone lines, 10 LAN lines	6 telephone lines, 8 LAN lines(Includes 2 lines of light)		-
Compressed Air			Capacity: 10.2㎥/min(max), caliber 20mm 2ea, pressure 8kg/c㎡(max)	Capacity : 9.9㎥/min(max), caliber 20mm 1ea, pressure 8.3kg/c㎡(max)		-
Water			Cold water 20Ø, pressure 3.0kg/c㎡(max) Hot water 15Ø, pressure 3.0kg/c㎡(max)	Cold water 20Ø, pressure 2.0kg/c㎡(max) Hot water 15Ø, pressure 1.5kg/c㎡(max)		-
Drainage			Caliber : 50,32mm	Caliber : 50mm		-
Gas(LPG)			Caliber : 20mm
Banner battens			9m 9EA, 11m 12EA, 18m 4EA	11m 9EA, 18m 5EA	9m 4EA, 18m 4EA	-

Auditorium

Classification	Auditorium
Area	1,580㎡
Scale(W×H)	42×50m(Stage 21×17m)
Telephone & Wired Internet	2 telephone lines, 2 LAN lines
Large Capacity Electricity	3Ø 4W 220/380V 400A 3Ø 4W 220/380V 100A 3 4W 200/380V 300A
Organizer’s Office	1 office
Capacity1,304	1,304 tiered seats (maximum seating: 1,500)
Lighting Batten	5 lighting battens, 6 SET battens 8 others (curtains)
Facilities	Projector (16,000 ANSI), 500-inch screen, projector (7,500 ANSI), 300-inch screen, VIP room, Information desk, Luggage storage, 2 practice rooms, 3 waiting rooms, rest area Etc. 1 cargo elevator (4 ton, W: 2.4m × H: 2.7m × D: 4.8m/ B2 ↔ 5F)

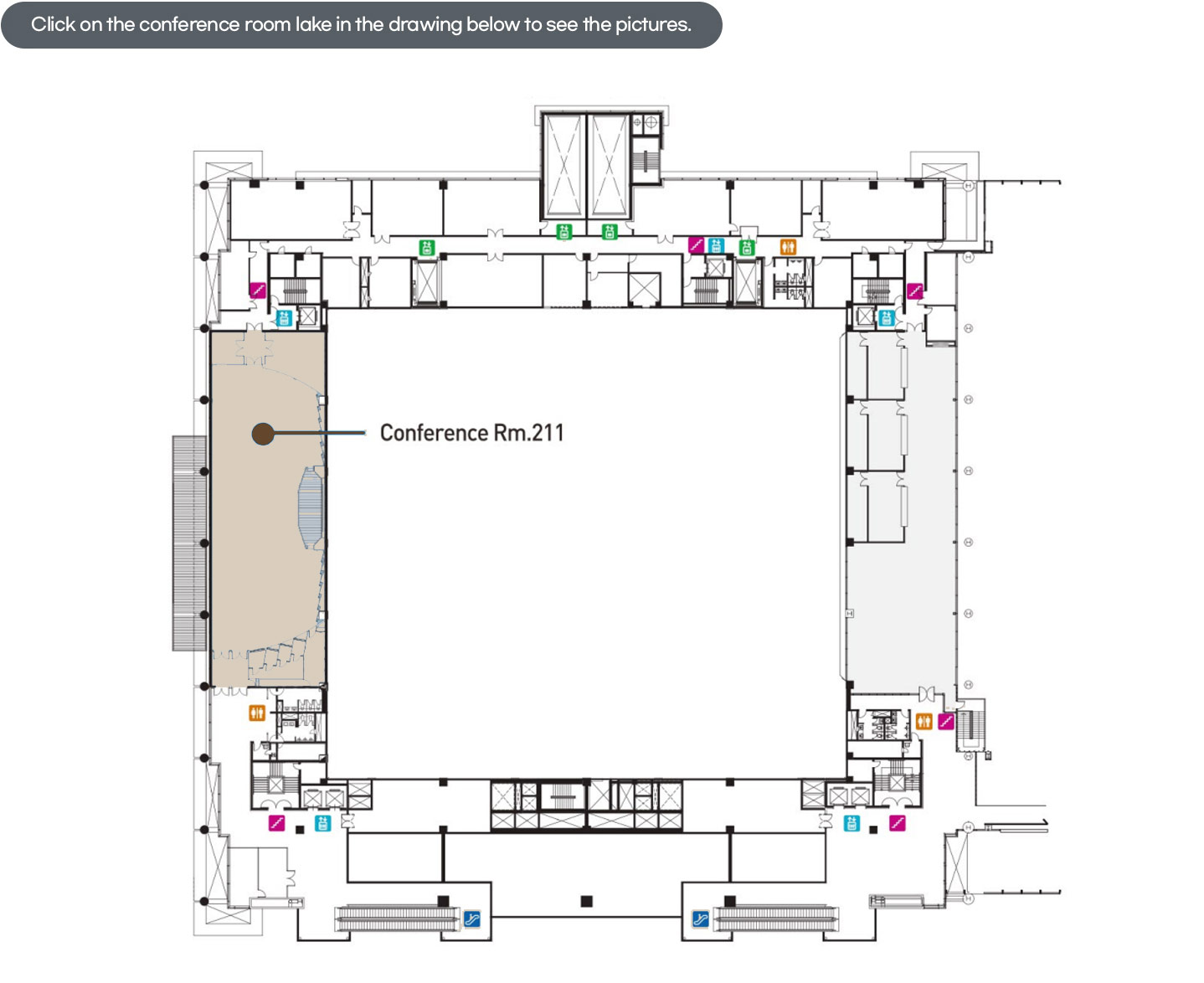

Conference Rooms 2F

Classification	Dimension(m)	Usable Area(㎡ .ft2)	Celling height(m)	capacity
211	35.8*13.3	476	3.1~3.3	Theater : 450
				Classroom : 230
				Reception : 150

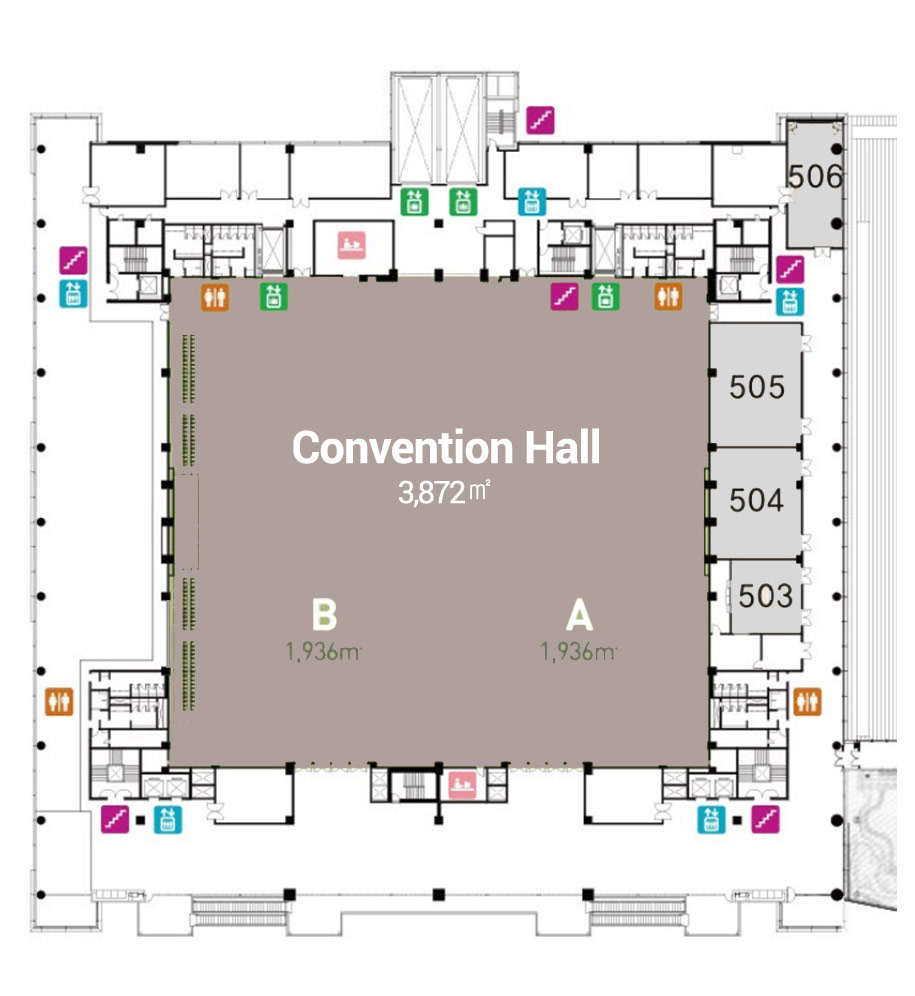

Convention Hall

Classification	Scale(m)	Area(㎡)	Ceiling Height(m)	Capacity
Classification	Scale(m)	Area(㎡)	Ceiling Height(m)	Stairs	Theater	Class room	Banquet
A+B	65.3x59.3	3,872.29	7.7	3,500	2,500	1,700	1,200
A	32.65x59.3	1,936.15	7.7		1,200	800	600

Classification	Convention Hall
Floor Load	1.5t/㎡
Floor Box	38ea for every 9m
Electricity	3Ø 4W 380V 100A, 3Ø 3W 220V 60A
Telephone & Wired Internet	10 telephone lines, 10 LAN lines
Compressed Air	Capacity: : 10.2㎥/min(max), caliber : 20mm 2EA, pressure : 7kg/c㎡(max)
Water	Cold water 20Ø, pressure 1.0kg/c㎡(max) Hot water 15Ø, pressure 1.0kg/c㎡(max)
Drainage	Caliber : 50mm, 32mm
Gas(LPG)	Caliber : 20mm
High Capacity Electricity	3Ø 4W 380V 400A, 3Ø 4W 380V 225A
Organizer’s Office	2(5F)
Capacity	3,500seats(Stairs 2,016seats)
Light battens	10 Lighting battens, 5 SET battens, Etc(a stage curtain, etc.)
Light battens	3 chain hoist(1t)2
Other facilities	27-ton trailer lift
	(W:3mxH:3.8mxD:11m)(operating floor : 1F.3F,5F)2대
	Floor closing : Carpet tiles, sound absorption facilities, simultaneous interpretation of six countries

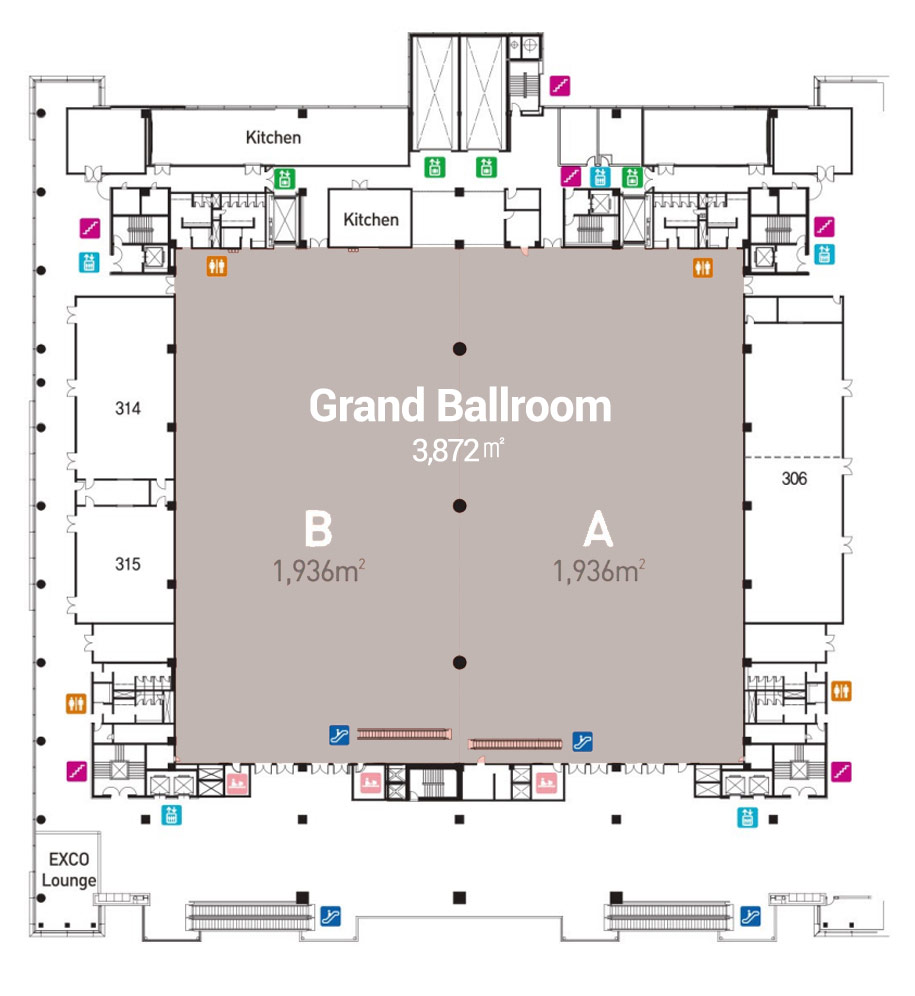

Grand Ballroom

Hall	Dimensions (m)	Floor Area(m2)	Ceiling Height(m)	Capacities
Hall	Dimensions (m)	Floor Area(m2)	Ceiling Height(m)	Theater	Classroom	Banquet
A+B	65.3x59.3	3,872 (Rental Area : 3,242)	8.1	2,800	1,620	1,080
A	32.65x59.3	1,936	8.1	1,600	900	600
B	32.65x40 (Rental Area : 32.65x44.3)	1,936 (Rental Area : 1,306)	8.1	1,200	720	480

Classification	Grand Ballroom
Floor Load	1.5t/㎡
Floor Box	38 for every 9m
Electricity	3Ø 4W 380V 100A, 3Ø 3W 220V 60A
Telephone & Wired Internet	10 telephone lines, 10 LAN lines
Compressed Air	Capacity : 10.5㎡ / min (max) Size : 20mm 2EA Pressure: 6kg / c㎡ (max)
Water	Cold water 20Ø, pressure 2.0kg/c㎡(max) Hot water 15Ø, pressure 2.0kg/c㎡(max)
Drainage	Caliber : 50mm, 32mm
Gas(LPG)	Caliber : 20mm
Large Capacity Electricity	3Ø 4W 380V 225A, 3Ø 3W 220V 600A
Banners Batten	9M 4EA, 18M 4EA
Organizer’s Office	4 Offices (Including 2 Waiting Rooms)

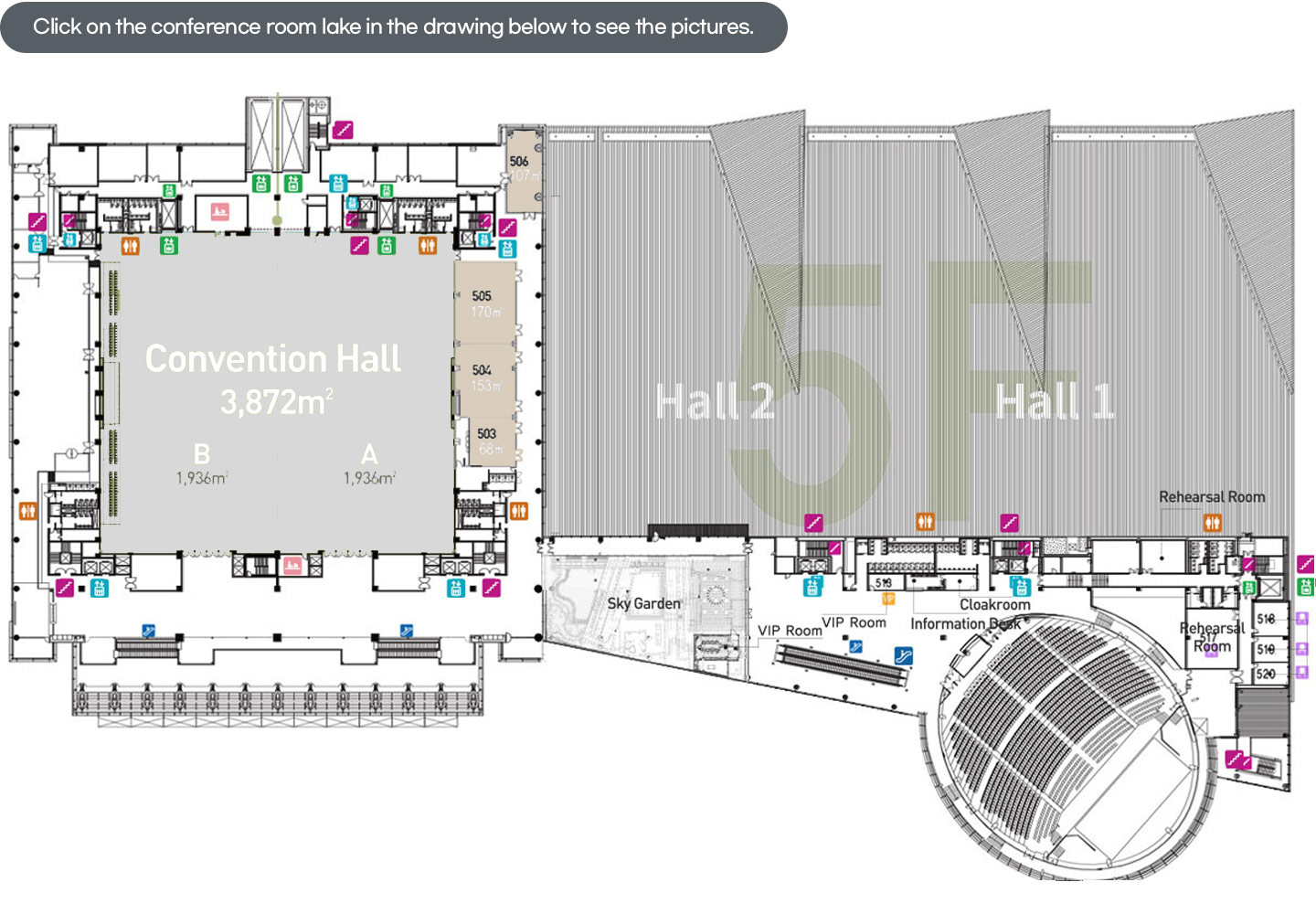

Conference Rooms 5F

Classification	Dimension(m)	Usable Area(㎡ .ft2)	Celling height(m)	capacity
Classification	Dimension(m)	Usable Area(㎡ .ft2)	Celling height(m)	Theater	Classroom	Reception
503	8.8*8.5	74	3	13(U type)
504	13.3*10.95	145	2.5(Stage 2.3)	130	60	60
505	14.8*10.95	162	3	32
506	15.1*6.55	99	3	100	45	40

Conference Rooms 3F

Classification		Dimension(m)	Usable Area(㎡ .ft2)	Celling height(m)	capacity
Classification		Dimension(m)	Usable Area(㎡ .ft2)	Celling height(m)	Theater	Classroom	Reception
West Wing	Room 320	18.4*10.9	200	5.2	200	100	60
	320-A	8.9*10.9	97	5.2	100	50	30
	320-B	9.5*10.9	103	5.2	100	50	30
	321	17.2*10.9	187	6	200	100	60
	321-A	8.3*10.9	90	6	100	50	30
	321-B	8.9*10.9	97	6	100	50	30
	322	17.4*10.9	189	5.2	200	100	60
	322-A	10.7*10.9	116	5.2	100	50	30
	322-B	6.7*10.9	73	5.2	100	50	30
	323	17.2*10.9	187	4.6	200	100	60
	323-A	8.3*10.9	90	4.6	100	50	30
	323-B	8.9*10.9	97	4.6	100	50	30
	324	19.914.2 (Stage 7.8m2m*0.22m)	282	5.7	400	200	120
	324-A	9.3*14.2	132	5.7	200	90	60
	324-B	10.6*14.2	150	5.7	200	90	60
	325	24.325.2 (Stage 12m3.72m*0.52m)	612	5.7~6	750	390	200
	325-A	11.7*12.6	147	5.7~6	180	90	50
	325-B	11.7*12.6	147	5.7~6	180	90	50
	325-C	12.6*12.6	158	5.7~6	180	90	50
	325-D	12.6*12.6	158	5.7~6	180	90	50
	306	3411 (Stage 11m4.5*0.3m)	374	3	410	200	150
	306-A	19*11	209	3	200	100	70
	306-B	15*11	165	3	200	100	70
	314	20*11	220	3	220	150	70
	315	13*11	143	3	130	80	50

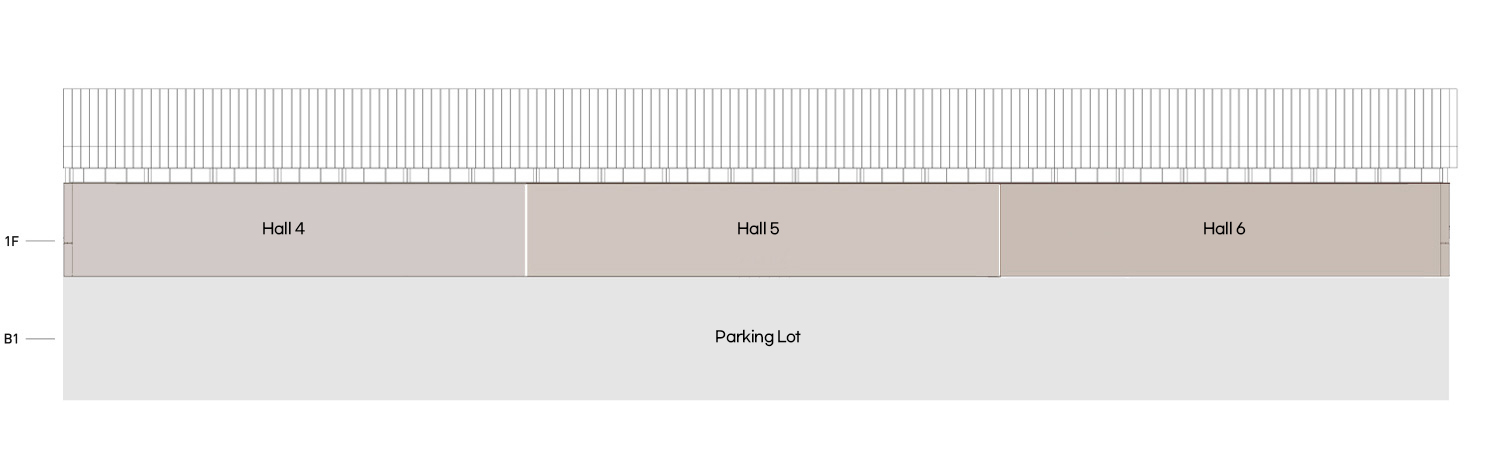

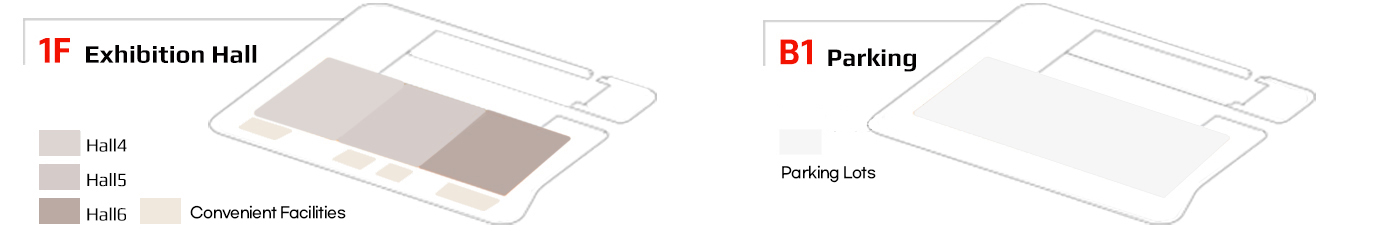

Exhibition 4,5,6Hall

Classification			Hall4	Hall5	Hall6	Sum
(㎡)			4,937	4,966	5,121	15,024
Scale(WxH)			63.3X76.7	63.3X76.7	63.3X76.7	190X76.7
Capacity	Theater	Conference	2,800	2,800	2,800	20,400
	Theater	Performance	4,000	4,000	4,000	20,400
	Class room		2,200	2,200	2,200	6,600
	Banquet		1,500	1,500	1,500	4,500
Capacity			250	250	250	750
Organizer’s Office			1	1	1	3
Floor Load(㎡)			3
Ceiling Height(m)			15.3 - 20.3
Floor Box			176ea for every 9m
Electricity			3Ø 4W 380/220V 100A for every 9m 3Ø3W 220V 60A for every 18m
Telephone & Wired Internet			6 telephone lines, 1 TV Lines, 8 LAN lines(Includes 2 lines of light)
Compressed Air			Capacity 9.9㎥/min(max) caliber 20mm 1 each pressure 8.3kg/c㎡(max)
Water			Cold water 20Ø, pressure 2.0kg/c㎡(max)
Drainage			Caliber : 50mm
Gas(LPG)			Caliber : 20mm
Parking			460
